  3. SPINNER type U5-1520 (5 axes)

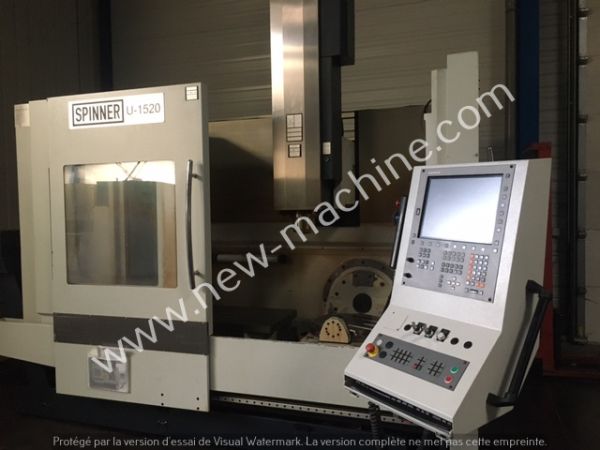

Photo New Machine

SPINNER type U5-1520 (5 axes)

HEIDENHAIN TNC 620 control
Workpiece dimensions
Dimensions of the turntable/swivel 600x500x400 mm / 500 kg
Maximum dimensions on both tables 1500x500x400 mm / 2.000 kg
Work zone
XYZ strokes 1520 / 520 / 460 mm
Linear guides way
Rapid advance 30 m/min
Table
Diameter of the 5-axis integrated table D = 650 mm
Dimensions of the rigid table 920 x 540 mm
Spindle
Speed ​​/ torque 12,000 rpm. / 97Nm
Power Pmax=15.2kW
Tool changer
Number of tool stations 32
Tool type SK 40
Machine Features
Dimensions (length x width x height) 3650 x 2540 x 2810 mm
Weight 10.5T
Equipment
Tool probe
chip conveyor
